Pouch Labeler

pouch labeling machine

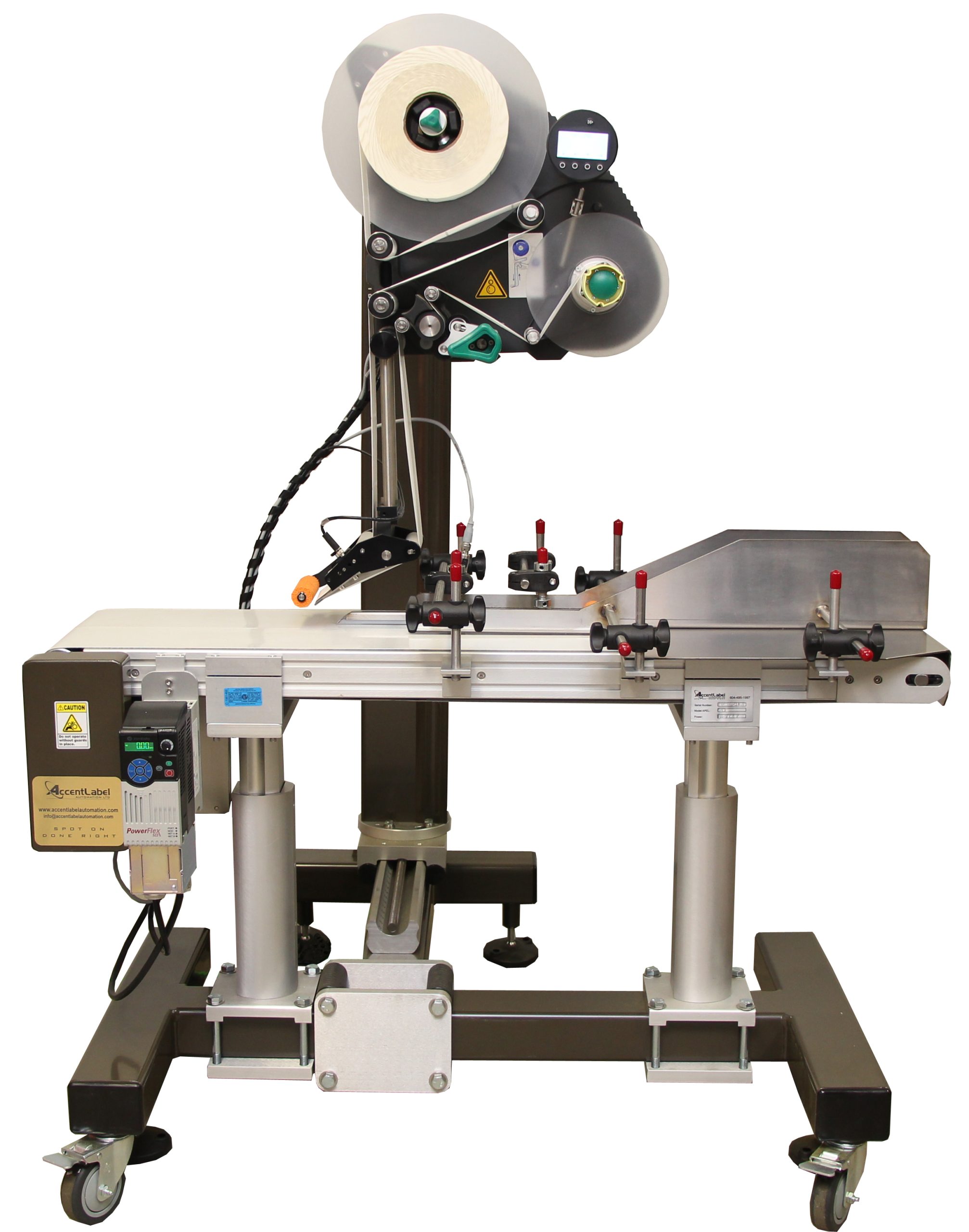

Pouch Labeler Model APEL40PL

Pouch labeler Model APEL40PL to apply labels onto flat surfaces such as pouches featuring a pouch loading platform and high friction belting.
pouch_02
pouch_03

Description

The Pouch Labeler model APEL40PL designed to apply labels onto flat surfaces such as pouches, bags or cartons featuring a pouch loading platform and high friction belting.

Upgrade your machine with the Accent designed and manufactured AXF25 Automatic Pouch Feeder to automate the process of feeding pouches onto the conveyor. The AXF25 will outperform any human operator hand feeding, getting your labeling job done quicker and more affordable.

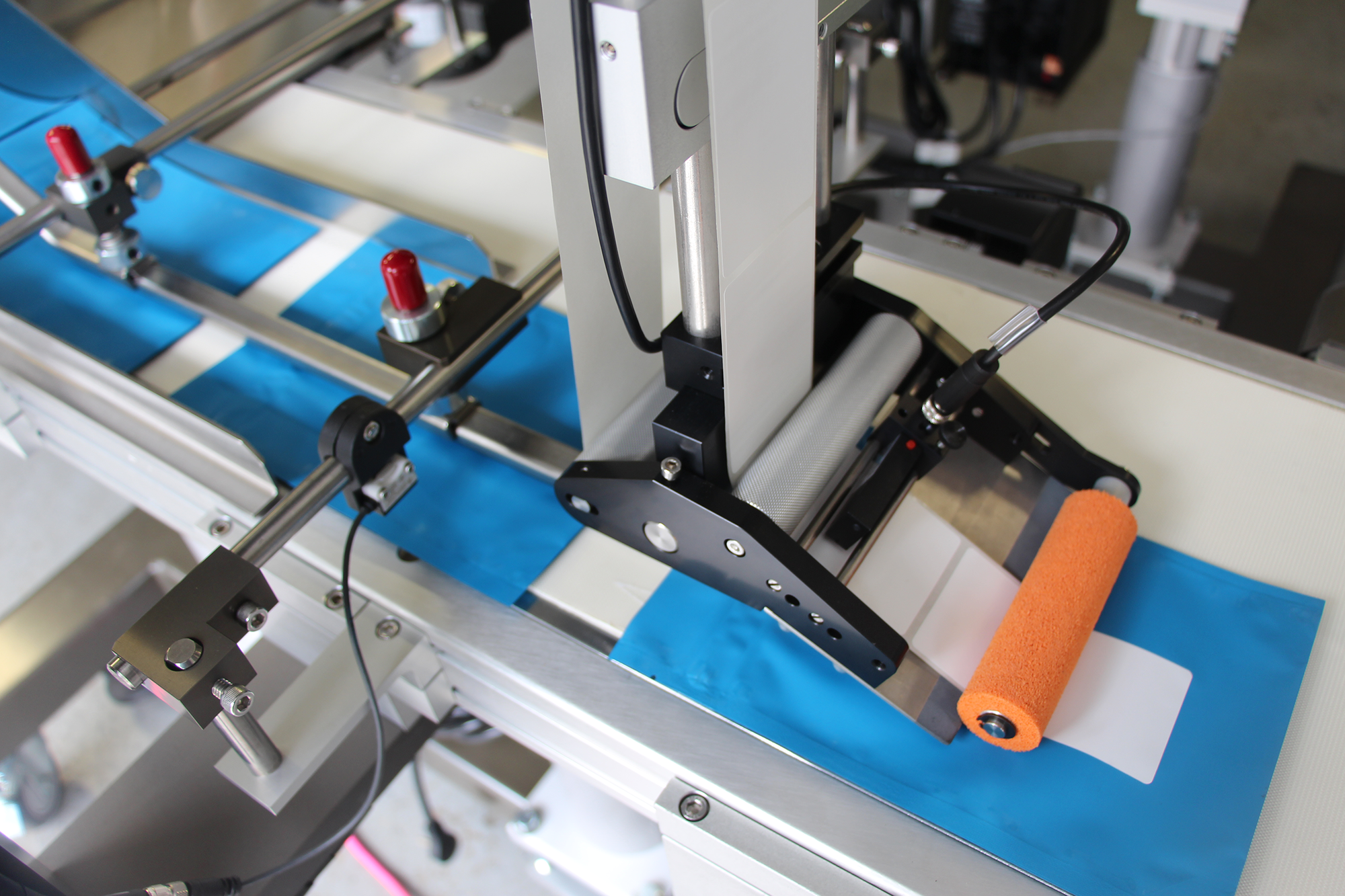

Once your pouch is fed onto the conveyor from the loading platform or AXF25, the high friction conveyor belt positively propels the bag for even and accurate label application.

This machine is built to be user friendly and versatile. Store up to 16 different product profiles consisting of different label sizes, speed and location of label placement within the machines memory for quick recall during changeover.

Are you applying a label to both sides of your pouch? You need the APEL70PL!



WE BUILD IT WITH

  • Novexx Label Head Model XLS204
  • Adjustable Dispense Edge
  • Stepper Driven Motor at 130′ or 40m maximum dispensing speed
  • Label Counter, Missing Label Detection and Auto Teach
  • Label Accuracy at dispensing edge +/- 0.5 mm
  • Max. 4″ (101mm) Label Width and 12″ (304.8mm) Supply Roll
  • 4′ long high tact Belt Conveyor with Leveling Feet
  • Speed Encoder to lock label dispense speed with conveyor speed
  • Loading platform for easy feeding of pouches¬†
  • Integrated Support Frame
  • Fully Adjustable Guide Railing

WE COULD ADD THIS

  • Automatic Pouch Feeder AXF25
  • Up to 6″ Label width with the XLS206 label head
  • Up to 9″ Label Width with the XLS209 label head
  • Infeed and out feed integration
  • Inkjet Coder
  • Print Applicator
  • Conveyor width and length modification
  • Additional packaging line components from Accent Packaging Equipment

Call 604-495-1997 or Email Us!
